Why ASME Code Fabrication Matters: Safety & Compliance in Pressure Vessels & Skids
When industrial equipment is designed to contain fluids or gases under pressure, fabrication quality is about more than appearance or structural strength. The materials, welding procedures, inspections, documentation and testing all play an important role in making sure the finished equipment can operate safely and reliably.
That is why ASME code fabrication is so important for pressure vessels, boilers and other pressure-containing equipment. Following the requirements established by the American Society of Mechanical Engineers (ASME) provides a structured approach to design, materials, welding, inspection, testing and quality control.
For companies in industries such as oil and gas, energy, manufacturing and infrastructure, selecting an experienced ASME Code fabricator can help reduce risk while making sure equipment is built according to applicable code requirements.
At NuWeld, our dedicated ASME Code Shop provides code-compliant designs, engineering support, material procurement, fabrication, inspections and testing for ASME-stamped pressure vessels and related equipment. Our experienced team works with customers to meet demanding project specifications while maintaining a focus on quality, safety and schedule.
What Is ASME Code Fabrication?
ASME code fabrication refers to the manufacturing of pressure-containing equipment according to the applicable requirements of the ASME Boiler and Pressure Vessel Code (BPVC).
ASME establishes detailed requirements for areas such as:
Pressure vessels are designed to contain gases or liquids at pressures above atmospheric conditions. Because a failure can have serious consequences, the fabrication process requires careful attention to every stage of production.
ASME certification and stamping also provide customers with confidence that a qualified manufacturer has followed the applicable requirements for the equipment being fabricated.
Why ASME Code Compliance Matters
Pressure-containing equipment operates under demanding conditions. Temperature, pressure, corrosion, vibration and repeated operating cycles can all affect equipment performance over time.
A properly implemented ASME code fabrication process helps address these risks before equipment reaches the field.
1. Safety Comes First
The most important reason to follow ASME requirements is safety.
Pressure vessels and other pressure-containing equipment store significant amounts of energy. If equipment is improperly designed, fabricated, inspected or tested, a failure could result in equipment damage, production interruptions or serious injuries.
ASME requirements establish rigorous processes for designing and manufacturing pressure equipment. Following those requirements helps ensure that materials, welds, construction methods and testing are appropriate for the intended application.
For industrial operators, that added level of oversight provides an important layer of protection.
2. Consistent Fabrication Standards
One of the advantages of working with an experienced ASME Code Shop is consistency.
Industrial projects may involve numerous components, materials, welds, drawings, inspections and documentation requirements. Without a structured quality system, maintaining consistency across a large project can become challenging.
ASME requirements provide a framework for managing these processes.
At NuWeld, our welders are qualified for a wide range of common and specialized welding procedures. Our team can also qualify additional procedures and welders in-house based on customer specifications and project requirements.
3. Proper Welding Procedures Are Critical
Welding is one of the most important parts of pressure vessel fabrication.
A pressure vessel may contain substantial internal pressure, making weld integrity essential to the safety and performance of the finished equipment. Poor weld quality, improper procedures or inadequate inspection can compromise the equipment.
ASME requirements address welding procedures and welder qualifications to help make sure fabrication is performed correctly.
NuWeld's welders are qualified through comprehensive in-house testing for a wide range of welding procedures, including procedures associated with the ASME BPVC, API and AWS standards.
This expertise allows us to approach each project based on its specific materials, design requirements and applicable specifications.
4. Inspection & Testing Help Verify Quality
Fabrication doesn't end when the final weld is completed.
Inspection and testing are essential components of a successful ASME code fabrication project. Depending on project requirements, pressure equipment may require visual examination, non-destructive examination, pressure testing and other quality checks.
NuWeld provides a range of inspection services, including Visual Testing (VT), Liquid Penetrant Testing (PT), Magnetic Particle Testing (MT), Ultrasonic Testing (UT) and Radiographic Testing (RT).
Integrity testing can also include hydrostatic and pneumatic testing based on applicable requirements and customer specifications.
These processes help identify potential issues and verify that fabricated equipment meets the required specifications.
What Is an ASME Stamp?
An ASME stamp identifies equipment that has been fabricated by a manufacturer authorized to apply the applicable ASME certification mark.
NuWeld's ASME Code Shop is authorized for several important certifications, including:
NuWeld's ASME authorization includes Section VIII Division 1 and Section IX.
The applicable stamp depends on the type of equipment and the requirements of the project.
ASME Code Fabrication for Pressure Vessels
Pressure vessels are among the most demanding fabrication projects because they must be designed and constructed to safely contain pressure throughout their operating life.

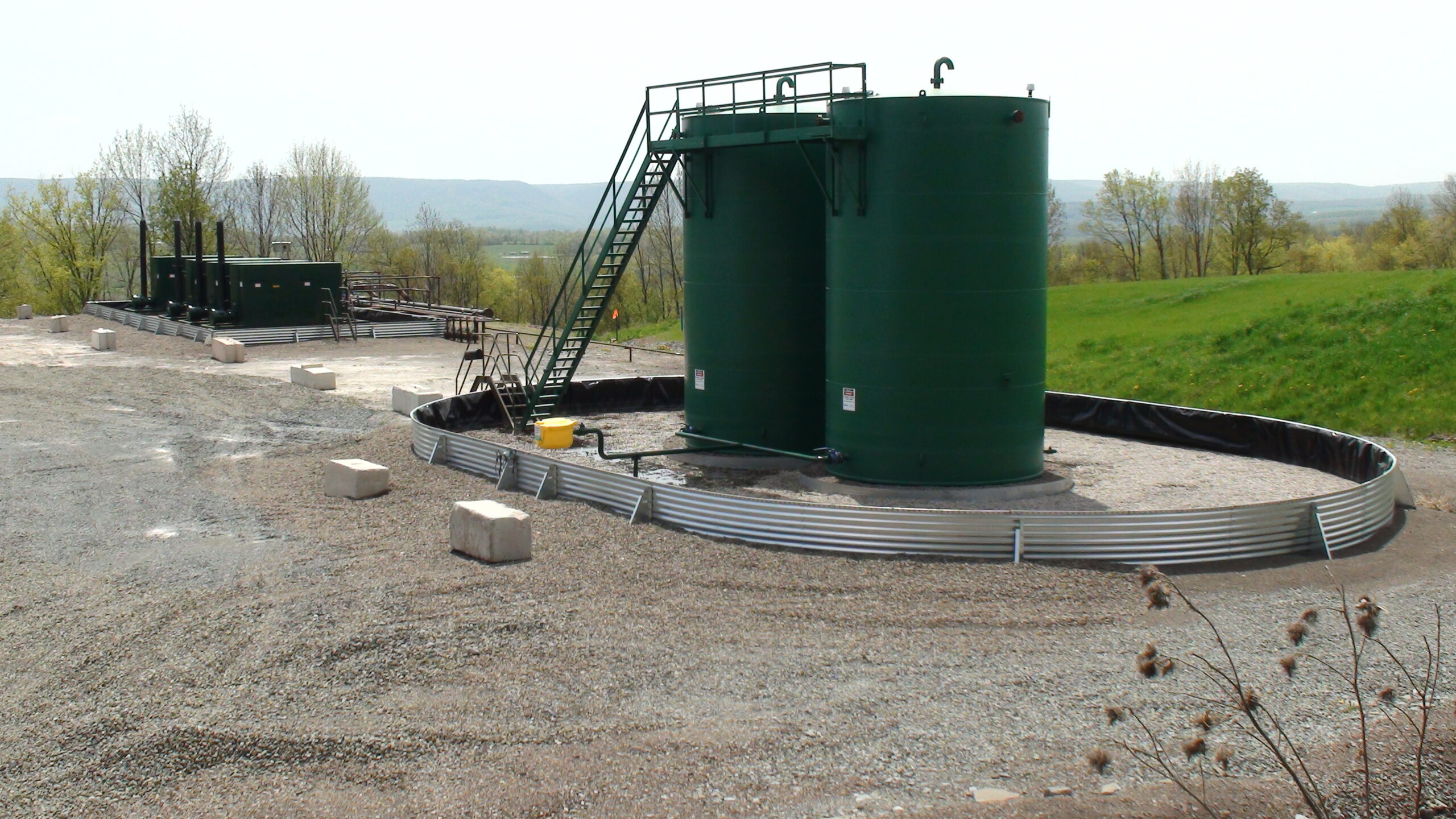

NuWeld fabricates pressure vessels in a variety of shapes and sizes for industrial applications. Our capabilities include fabrication of:
- Pressure vessels
- Storage and processing vessels
- Tanks
- Heat exchangers and components
- Boiler and combustion vessel components
- Specialized industrial equipment
The fabrication process can include engineering and design support, material procurement assistance, welding, inspection, testing, finishing and delivery.
By managing multiple stages of a project through an experienced fabrication partner, customers can simplify coordination and maintain better control over project requirements.

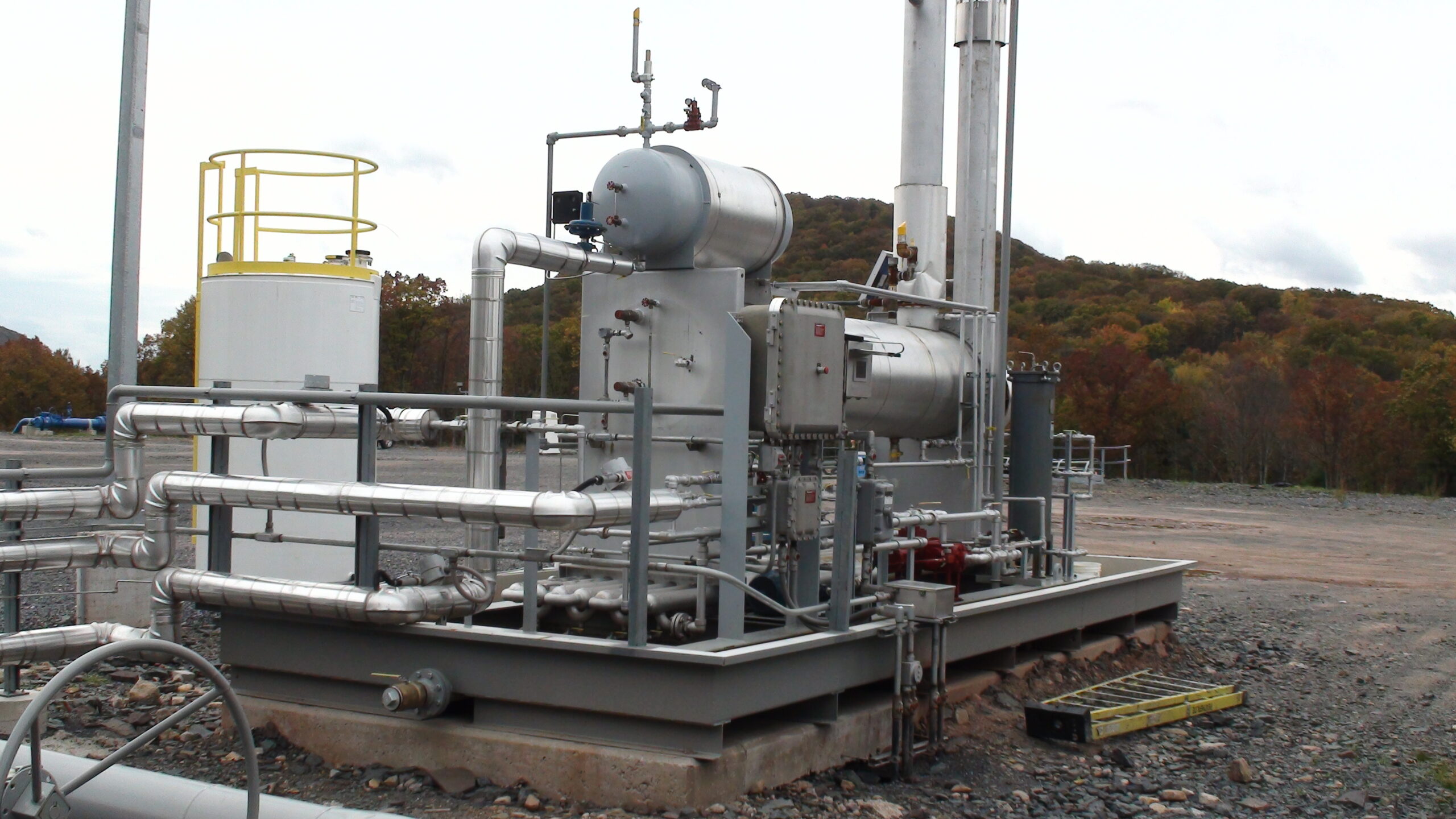

ASME Code Fabrication for Skids and Modular Equipment
Pressure vessels aren't the only equipment that can benefit from ASME-focused fabrication expertise.
Industrial skids often combine pressure vessels, piping, valves, structural components, instrumentation and other equipment into a single assembly. These systems may be used in oil and gas, energy, manufacturing and other industrial applications.
NuWeld specializes in modular and skid-mounted assemblies, as well as process and power piping.
When a skid incorporates pressure-containing equipment, the fabrication process may involve multiple applicable codes and specifications. Careful coordination between engineering, welding, fabrication, inspection and testing is essential.
A qualified fabrication partner can help make sure that the various components are fabricated and assembled according to the requirements established for the project.
The Importance of Documentation and Traceability
Quality isn't only about the physical equipment. Documentation is another important part of ASME code fabrication.
Depending on the project, documentation may include information related to:
- Material certifications
- Welding procedures
- Welder qualifications
- Inspection results
- Non-destructive examination
- Pressure testing
- Design calculations
- Fabrication records
NuWeld's ASME process includes oversight of documentation. For ASME-stamped pressure vessels, a third-party Authorized Inspector reviews and approves applicable documentation and witnesses required testing.
Maintaining accurate documentation helps demonstrate compliance and provides important records throughout the equipment's service life.
Why Choose an Experienced ASME Code Fabricator?
Not every fabrication shop is equipped or authorized to build ASME-stamped pressure equipment.
When selecting a fabrication partner, companies should consider:
ASME Certifications
Verify that the fabricator holds the appropriate ASME certifications and stamps for the type of equipment being produced.
Qualified Welders
Experienced and properly qualified welders are essential for producing reliable pressure-containing equipment.
Inspection Capabilities
Look for a fabricator with strong inspection and testing capabilities, including access to qualified welding inspection personnel.
Facility Capacity
Large pressure vessels and industrial skids require significant shop space, cranes, equipment and material-handling capabilities.
NuWeld's facility includes an expansive indoor fabrication shop, heavyweight cranes, large truck access doors, dedicated blast and paint areas, extensive laydown space and direct rail access.
How NuWeld Supports ASME Code Projects
NuWeld brings together fabrication experience, welding expertise, inspection capabilities and project support to help customers complete demanding industrial projects.
Our ASME Code Shop supports:
From initial planning through fabrication, inspection, testing and delivery, NuWeld focuses on accuracy, quality and dependable project execution.
ASME Code Fabrication Helps Reduce Project Risk
Choosing the right fabrication partner can have a significant impact on a project's overall risk.
An experienced ASME fabricator can help reduce the likelihood of:
- Fabrication errors
- Welding problems
- Failed inspections
- Testing delays
- Documentation issues
- Costly field rework
- Schedule disruptions
The earlier fabrication requirements are considered, the easier it becomes to identify potential issues and address them before they affect production or installation.
For complex pressure equipment and skids, partnering with an experienced ASME Code Shop isn't simply about obtaining a certification. It's about establishing a disciplined process for producing equipment that is safe, reliable and built to project requirements.
Choose NuWeld for ASME Code Fabrication
Pressure vessels and industrial skids deserve a fabrication partner that understands the importance of safety, compliance, quality and schedule.
NuWeld's experienced team provides ASME code fabrication for demanding industrial applications, with authorized ASME and NBIC stamps, qualified welders, inspection capabilities, engineering support and extensive fabrication capacity.
Whether you need a new pressure vessel, a skid-mounted assembly, power boiler components or vessel repair and modification, NuWeld can help you navigate the fabrication process from start to finish.
Talk to NuWeld About Your ASME Fabrication Project
Need a reliable fabrication partner for pressure vessels, skids, boilers or other pressure-containing equipment? NuWeld’s experienced team provides ASME code fabrication backed by qualified welders, inspection capabilities, engineering support and a dedicated ASME Code Shop.
Contact NuWeld today to discuss your project requirements and learn how our team can help deliver quality, code-compliant fabrication.
Frequently Asked Questions
What is ASME code fabrication?
ASME code fabrication is the process of manufacturing pressure-containing equipment according to applicable requirements established by the ASME Boiler and Pressure Vessel Code. Requirements can cover design, materials, welding, inspection, testing and documentation.
